When you’re working with fasteners, the last thing you want is to confuse a left-handed thread with a right-handed one. Mixing them up can make the parts simply not working. So, how do you identify left-handed threads in fasteners?

There are some certain features that have separated left hand threads from the right handed ones. You have to look at the direction of the thread’s spiral. There is also marking with a notch or symbol that helps with the identification.

In this guide, we’ll discuss all the details of identifying left-handed threads from the standard right-handed threads. We’ll also focus on the tools that you can use for the identification.

What are left-handed threads, and why are they used?

Left-handed threads, often called reverse threads, are designed to twist in the opposite direction of typical right-handed threads. When you turn a left-handed screw, it tightens when rotated counterclockwise, unlike the standard screw, which tightens when turned clockwise.

These threads are less common but serve an important role in specific situations. For instance, in machinery that rotates, like engines or turbines, right-handed threads can become loose over time due to the motion. Left-handed threads provide a more secure fit in these cases by resisting this loosening effect. They’re also used in specific applications, like gas lines, where it’s important to avoid mixing different types of gases or prevent accidental loosening.

Using the wrong thread type can cause major issues. For example, a right-handed screw in a left-handed thread spot could lead to poor connections or even damage the equipment. Left-handed types are a smart choice when you need extra security or want to prevent things from coming apart under constant rotation.

How do left-handed threads differ from standard threads?

Both left and right handed threads serve the same basic function, which is keeping things fastened securely. However, they differ in several important ways. Understanding these differences can help you use the right types of fasteners for the job:

Direction of Rotation

The most obvious difference is the direction in which these threads tighten. Right-handed threads tighten when turned clockwise and loosen when turned counterclockwise.

Left-handed types, on the other hand, work in the opposite direction. They tighten when rotated counterclockwise and loosen when rotated clockwise. This reversal is necessary in situations where standard threads would become loose due to rotational forces.

Marking

In most cases, manufacturers mark left-handed threads with specific indicators. For instance, a left-handed thread might be labeled with an “LH” designation, like M8 x 1.25LH, or sometimes marked with a simple “L” on the fastener head. The Unified Thread Standard (UTS) system also uses this method, with threads like “1/4-20 UNC-LH,” showing that they are left-handed. Also, arrows may be added on the surface of the fastener to indicate a left-handed thread.

Compatibility

Right-handed and left-handed threads cannot be used interchangeably. They are specifically designed to fit opposite directions and, as such, cannot properly engage with each other.

Trying to use the wrong type of thread can lead to failed connections, weak engagements, or even damage to both the fastener and the material it’s fastening.

Applications

Right-handed threads are used in the vast majority of fastener applications, including everyday tasks like putting together furniture or attaching components in machines.

Left-handed threads in fasteners are more specialized, typically used in situations where there is a risk that the fastener could loosen from normal operation. For example, they are often found in rotating machinery like engines, where the movement could cause right-handed screws to come undone over time.

Cost

Manufacturing left-handed threads is more complex than making the standard type. The specialized tools and processes needed to create them often make left-handed ones more expensive to produce. As a result, they are less commonly used, which contributes to their higher cost.

What tools can help identify left-handed threads?

Identifying left-handed threads doesn’t have to be complicated. There are several tools and methods you can use to easily tell whether a screw, bolt, or nut has a left-handed thread:

Visual Inspection

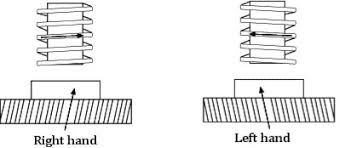

The quickest way to spot the thread direction is to take a close look at the threads. When you view the fastener head-on, the threads of a right-handed screw slope from the bottom left to the top right. In contrast, left-handed threads angle from the bottom right to the top left.

Turning the Fastener

Another easy method is to try turning the screw or bolt. If you rotate it clockwise and it moves away from you, it’s a right-hand thread. If it moves toward you when turned clockwise, it’s a left-hand thread. This rule works well for a bolt or nut that doesn’t have a clear marking.

Looking for Markings

As we’ve discussed above, many manufacturers mark left-handed threads to avoid confusion. For example, the letter “L” or “LH” might appear on the fastener itself or its packaging. This is especially helpful when dealing with multiple fasteners or when the direction is important for the application. In some specialized fields, like watchmaking, left-handed screws may even have distinct grooves or additional slots to help with identification.

Thread Gauge

For a more precise check, you can use a thread gauge. This tool measures the pitch of a screw thread and can also help you determine whether it’s left or right-handed. A thread gauge works by aligning with the thread’s profile, allowing you to compare it against standard measurements.

When should you use fasteners with left-handed threads?

Left-handed threads in fasteners are used in specific situations where they provide unique benefits. Here’s when you should consider using them:

Preventing Loosening During Rotation

Left-handed threads are perfect for applications where continuous motion could cause a right-handed fastener to loosen. A common example is on bicycle pedals. The left pedal is designed to rotate counterclockwise, which would naturally loosen a right-handed thread. Using a left-handed thread ensures that the pedal stays tightly secured, even with the rotational force. Similarly, other rotating tools like grinding wheels, circular saw blades, and fan rotors often use left-handed threads to prevent loosening during operation.

Safety and Proper Connections

In some cases, left-handed fasteners play an important role in ensuring the safety of a device or mechanism. For instance, gas cylinders with flammable gases are fitted with left-handed threads to prevent dangerous mix-ups. This design ensures that only the correct gas apparatus, like a gas grill, can connect to the cylinder. Without this safety feature, a simple mistake could lead to a dangerous situation.

Plumbing and Specialized Mechanisms

Left-handed threads can also be found in plumbing systems, especially when connecting pipe ends that shouldn’t rotate. These connections often use both left- and right-handed fasteners for a secure and stable fit. Also, left-handed threads are useful in mechanical systems that require specific directional movement, like in turnbuckles or lead screws on lathes.

Racing and High-Speed Applications

In racing cars, like Formula 1, left-handed threads are used on wheel nuts to ensure that the motion of the wheel doesn’t cause the nut to loosen. Even a little loose fastener can cause accidents in high-speed rotations.

Conclusion

Identifying left-handed threads in fasteners is essential to ensure the right type is used for specific applications. You can do this by visually inspecting threads, using tools like a thread gauge, or reading the markings on their body. Understanding how and when to use them can prevent issues and improve safety.
